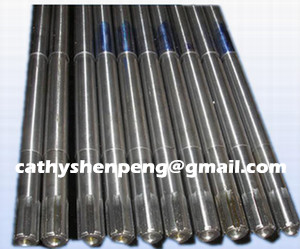

Alloy Metal Pump Shaft with Inconel 718 and Monel K500 Material for Electric Submersible Pump System
Alloy Metal Pump Shaft with Inconel 718 and Monel K500 Material for Electric Submersible Pump System
Contact Now

Alloy Metal Pump Shaft with Inconel 718 and Monel K500 Material for Electric Submersible Pump System

Minimum Order Quantity : We can supply sample bar for testing Price : according to size,
Packaging Details : bubble +iron box Delivery Time : 30~35days
Payment Terms : T/T
Place of Origin: CHINA,DONGYING Brand Name: GARDENER

Detail Information
Material: Inconel 718 And Monel K500 Size: 0.394in ~1.575in
Machining Ability: Yes,Spline End And Keyway

Product Description

Alloy Metal Pump Shaft with Inconel 718 and Monel K500 Material for Electric Submersible Pump System





Our pump shaft material is made by vacuum smelting process and in the manufacturing procedure we also use straightening machine and eddy

current testing equipment and ultrasonic flaw detection to make sure product mechanical property and product  quality stability and uniformity.



Steel Grade Supply Status
UNS N05500 Cold working +Aging treatment



Chemical Composition

Grade Element Ni＋Co Cu Al Ti Mn Fe Si C S
UNS N05500

Min.value

Max.Value

63.0

-

27.0

33.0

2.30

3.15

0.35

0.85

-

1.5

-

2.0

-

0.5

-

0.18

-

0.010



Mechanical Property and Hardness at the indoor temperature

Grade Status

Diameter

mm

Tensile strength

Min.Value

N/mm2

Yield Strength

Bias value 0.2%

Min.Value

N/mm2

Enlongation

2inch or 4D

Min.Value

%

 Hardness

Brinell Hardness

3000kg

Min.Value

Rockwell Hardness C

Min.Value
UNS N05500 Cold working +aging treatment 10.0～25.4 1 000 760 15.0 300 32
＞25.4～40.0 965 690 17.0 280 29



Mechanical Property of UNS N07718

Enlongation lasting 690MPa

Hardness

HB
Temperature

σ0.2

MPa

 σb MPa

δ

%

ψ

%

τ

h

δ5

%
20℃ ≥1030 ≥1280 ≥12 ≥15     ≥346
650℃ ―― ≥1000 ≥12 ≥15 ≥25 ≥5



More informations,please contact  cathyshenpeng@gmail.com
