casing whipstock and milling unit for oil well

Minimum Order Quantity : ONE SET Price : See TYPE
Packaging Details : Firmed plywood box Delivery Time : 15~ 30days according to type
Payment Terms : 30% downpayment by T/T and balance before delivery
Place of Origin: China Brand Name: Gardener
Model Number: DXQ,FDXZ

Product Description

whipstock and milling unit.

we can design drawing and propose casing window construction desing program  according to client requirements and well conditions..Please kindly see following introduction and parameters.

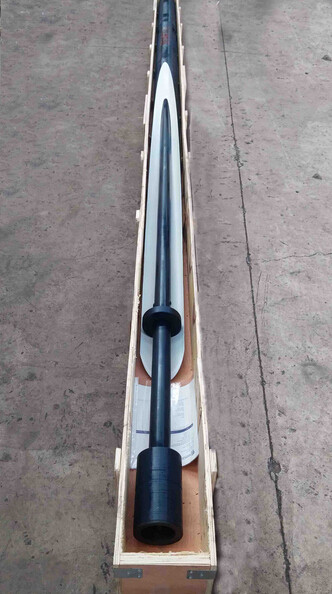

Hydraulic Setting Slip Type Whipstock

Deflecting tools produced by our company include ground anchor type whip stock and hydraulic setting slip type whip stock. Hydraulic setting slip type whip stock is provided with accurate direction, solid setting and other characteristics.

When reservoir casing is seriously damaged or reservoir is collapsed and buried by sands so that oil wells cannot produce oils, to use the upper casings and reduce costs of drilling ahead, window sidetracking can be made on the upper casing on the top of the reservoir to for new boreholes for oil production.

Window sidetracking in the casing is an important means to drill a deviated well in a well with the lower casings seriously damaged so as to make the well restore production capacity.

Window sidetracking tools mainly include whip stock and window milling taper.

Basic Parameters and Performance Indicators

Product Specification and Code

Applicable Casing

Structural Form

Overall Dimension (mm)

Bevel Angle

Bevel Length (mm)

Window Length (mm)

Applicable Well Deviation

Applicable Well Temperature

Setting Method

Connection Thread

DXQ102

5"(ф127)

Common type

ф102×3210

1730

1600-1800

≤40°

≤200°

Hydraulic setting by ball injecting ★ or direct hydraulic setting

2⅞REG

DXQ102F

Leak protection type

ф102×3720

DXQ114

5½" (ф139.7)

Common type

ф114×3450

1900

1800-2000

NC31★or 2⅞REG

DXQ114F

Leak protection type

ф114×3960

DXQ142

6⅝"

(ф168.28)

Common type

ф142×3940

2415

2000-2200

NC38★or 3½REG

DXQ142F

Leak protection type

ф142×4450

DXQ150

7"

(ф177.8)

Common type

ф150×4000

2515

2400-2500

NC38★or 3½REG

DXQ150F

Leak protection type

ф150×4200

DXQ160

7⅝"

(ф193.68)

Common type

ф160×4200

2700

2500-2700

NC38★or 3½REG

DXQ160F

Leak protection type

ф160×4400

DXQ210

9⅝"

(ф244.5)

Common type

ф210×4600

2600

2700-3000

NC50★or 4½REG

DXQ210F

Leak protection type

ф210×4800

DXQ305

13⅜"

(ф339.7)

Common type

ф305×5970

4.5°

3600

3800-4300

65/8REG

DXQ305F

Leak protection type

ф300×6250

Note: the method with  " ★ " is recommended. If the customer has no special requirements, the product with such specifications will be processed by this method.

Window Milling Unit

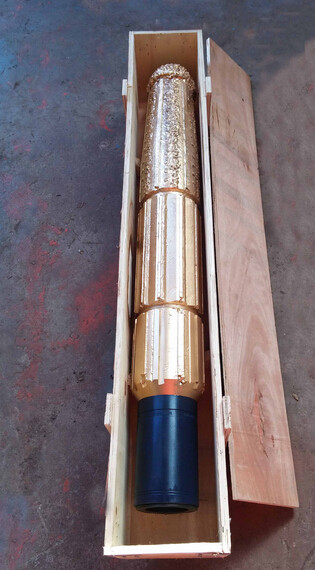

Window milling unit  is equipped with the whip stock to complete window cutting in the casing.

The window milling unit is integrated with window cutting and window repair, which can complete window cutting and repair operations once to improve construction speed, thus meeting site construction requirements properly.

In terms of design, tool appearance, alloy cutting edge angle and selection all are subject to optimization design.

Technical Parameters of Window Milling Unit

Applicable Casing

Product Specifications

Maximum OD
(mm)

Tool Length
(mm)

Thread Type
(female )

5"(ф127)

KCXZ104

ф104

980

NC26

5½"(ф139.7)

KCXZ118

ф118

1080

NC31

KCXZ120

ф120

1080

NC31

6⅝"(ф168.28)

KCXZ144

ф144

1150

NC38

KCXZ150

ф150

1150

NC38

7"(ф177.8)

KCXZ152

ф152

1150

NC38

7⅝"(ф193.68)

KCXZ165

ф165

1200

NC38

9⅝"(ф244.48)

KCXZ216

ф216

1600

NC50

13 3/8"(ф339.7)

KCXZ308

ф308

1750

65/8REG

And after buying our products,if you need,we will send one engineer to help you to operate the equipment.

We can help you to finish the work sooner.When all tools are well prepared,within 7~10days,window sidetracking operation will be finished.

Contact us now for more informations!
