Hot sale!Reda,Electric Submersible Pump Cable,flat cable ,connect cable with good price and quality

China Hot sale!Reda,Electric Submersible Pump Cable,flat cable ,connect cable with good price and quality supplier

Large Image :  Hot sale!Reda,Electric Submersible Pump Cable,flat cable ,connect cable with good price and quality

Product Details:

Place of Origin: China
Brand Name: GARDENER
Certification: APIISO,API Q1,API TS,CCC
Model Number: Reda type

Payment & Shipping Terms:

Minimum Order Quantity: 10M
Price: 23.4$/M
Packaging Details: reel,if small quanity,packing is plwood box.
Delivery Time: 10days
Contact Now
Detailed Product Description
VOLTAGE: 3KV,4KV,5KV,6KV #5: AWG Flat Lead Monel Sheath/Galvanised Armor
Model: Reda Type: Flat
Working Temperature: 205℃(401°F) Advantages: Oil-resistance,heat-resistance,corrosion Resistance

Electric Submersible Pump Cable(MLE)

PI& EPDM/Alloy Lead /205℃(401°F)/Flat



Contact Details

Cathy email:cathyshenpeng@gmail.com

cellphone:0086 159 6388 1160(whats app)

skype:cathyyuan1981

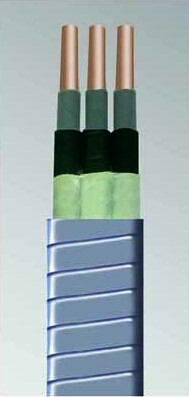

Product Description:

Oxygen-free solid bare copper conductor,combined insulation with Polyimide-F46 composite film and EPDM rubber,alloy lead sheath,polytef and fiber tape(synthetic braid)covered completely over the sheath,full galvanized steel(or stainless steel or Monel)Tape interlocking Armour,Flat type.



Production Range

Voltage:3kv,4kv,5kv,6kv

Temperature:The permisssible and long-term working temperature is 205℃(401°F)



Performing Criterion



API RP 11S5-2008,11S6-2008,IEEE 1017,1018,1019;GB/T16750-2008

Hot sale!Reda,Electric Submersible Pump Cable,flat cable ,connect cable with good price and quality



Application Range

The cable is applicable for using in electric submersible pump units with rated voltage less than 3kv or 6kv.It has the eccellent function of oil-resistance,heat-resistance and corrosion-resistance.

Hot sale!Reda,Electric Submersible Pump Cable,flat cable ,connect cable with good price and quality

We can also production customer's required cable according to the concrete specification.

Factory workshop and Equipments

Our factory covers an area of more than 178,000 square meters,more than 100,000 square meters buliding area,has imported Germany,Finland,Canada and other countries and regions of advanced CNC production equipment and testing equipment,we can produce less than 3kv or less than 6kv whole series electric submersible pumps cable.

Hot sale!Reda,Electric Submersible Pump Cable,flat cable ,connect cable with good price and qualityHot sale!Reda,Electric Submersible Pump Cable,flat cable ,connect cable with good price and quality

Canada KALMARK Interlocking Armor Machine

Hot sale!Reda,Electric Submersible Pump Cable,flat cable ,connect cable with good price and quality

90 Extruding Machine

Hot sale!Reda,Electric Submersible Pump Cable,flat cable ,connect cable with good price and quality

Loading and Installation Diagram

Hot sale!Reda,Electric Submersible Pump Cable,flat cable ,connect cable with good price and quality

Hot sale!Reda,Electric Submersible Pump Cable,flat cable ,connect cable with good price and quality





Delivery & Packing



All-steel corrugated reels with fixed base,outside wrapped by fuming wood;

Packing length according to customer's requirements.
