Hot sale Copper conductor,EPDM insulation, lead sheath,Nitrile rubber jacket,galvanized steel armor,round ESP cable

Product Description

REDA Electric Submersible Pump Cable (MLE)

PI& EPDM/Alloy lead/NBR/232℃(450°F)/Round

More informations Please kindly contact cathy@goodpumps.com,

Products Description

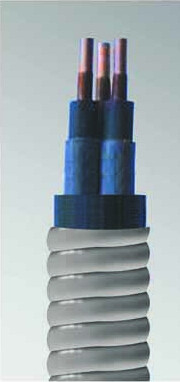

Oxygen-free solid(stranded) bare copper conductor,combined insulation with polyimide-F46 composite film and EPDM rubber,Inner alloy lead sheath,fiber tape covered completely over the sheath,outer Nitrile Rubber Jacket, full galvanized steel(or stainless steel or Monel)tape interlocking armour,round type.

Production Range

Voltage:3kv,4kv,5kv,6kv.

Temperature:The permissible and long-term working temperature is 232°C(450°F)

Performing Criterion

API RP 11S5-2008,11S6-2008;IEEE 1017,1018,1019;GB/T 16750-2008

Application Range

The cable is applicable for using in Electric submersible pump units with rated voltage less than 3kv or 6kv.It has the excellent function of oil-resistance,heat-resistance and corrosion-resistance.

Specification & Parameters

We can also production customer's required cable according to the concrete specification.

Delivery &Packing

All steel corrugated reels with fixed base,outside wrapped by fuming wood;

Packing length according to customer's requirements.

Manufacturing Equipment

Testing Equipment

Product Qualification

API ISO,API Q1,API TS,CCC.

Loading and Installation Diagram
