456series Electric Submersible hollow motor shaft for electrical submersible pumping equipment

Minimum Order Quantity : 10pcs Price : according to requirements
Packaging Details : iron shelf Delivery Time : 30days
Payment Terms : T/T,
Place of Origin: CHINA Brand Name: GAARDENER
Model Number: Oil Electric Submersible hollow motor shaft and solid motor shaft for 375 series,540series,456series,562series

Detail Information
Oil Electric Submersible Motor Type: 375 Series,540series,456series,562series Material: AISI4135(35CrMo)
Diameter: 22.2mm~50mm

Product Description

375 series,540series,456series,562series Oil Electric Submersible hollow motor shaft for electrical submersible pumping equipment (ESP motor shaft series)



Application

It is applicable for oil electric submersible motor like 375 series,540series,456series,562series



Characteristics

The working mode is through continuous working, and the connector has good sealing performance. When the single motor shaft can not meet the requirements, it can be connected in tandem by the upper section, the middle section or the lower section. After the motor overspeed test, there is no permanent deformation or defect hindering the normal operation of the motor.



Specifications

No. Product Name Diameter Material Length
1 Hollow motor shaft Φ22.2 AISI4135(35CrMo) as per drawing
2 Hollow motor shaft Φ25 AISI4135(35CrMo) as per drawing
3 Hollow motor shaft Φ30 AISI4135(35CrMo) as per drawing
4 Hollow motor shaft Φ35 AISI4135(35CrMo) as per drawing
5 Hollow motor shaft Φ48 AISI4135(35CrMo) as per drawing
6 solid motor shaft Φ25 AISI4135(35CrMo) as per drawing
7 Solid motor shaft Φ30 AISI4135(35CrMo) as per drawing
8 Solid motor shaft Φ35 AISI4135(35CrMo) as per drawing
9 Solid motor shaft Φ48 AISI4135(35CrMo) as per drawing



Size Range

Diameter range from 22.2mm~50mm.



Technical Performance

Tensile strength: >=875MPa

Yield strength:>=700MPa

Elongation% :within 2 inch

Brinell hardness: >=260HB



Delivery Requirement

Provide dimension and material test report



Storage and Transportation

Set the shelves neatly,do anti-rust treatment,fobidden soaking and bumping.

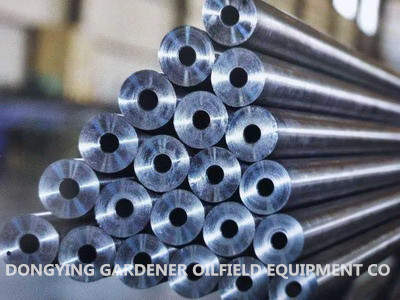

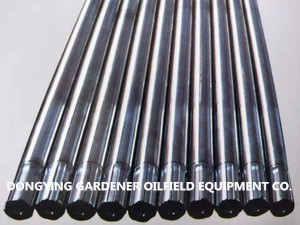

456series Electric Submersible hollow motor shaft for electrical submersible pumping equipment 0456series Electric Submersible hollow motor shaft for electrical submersible pumping equipment 1



More informations please contact cathyshenpeng@gmail.com, we supply motor shaft with high quality,competitive price and good delivery time.
