China Manufacturer Tight Tolerance Good Roundness Various Material Submersible Motor Housing

Product Description

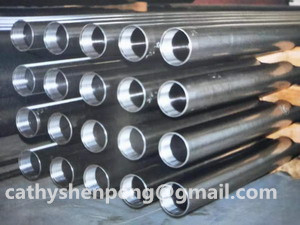

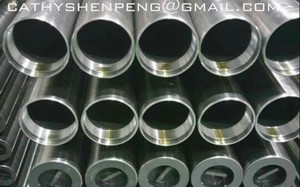

China Manufacturer Tight Tolerance Good Roundness Various Material Electric Submersible Motor Housing

The pump stages are housed in a pressure sleeve(housing) made of thigh grade alloy steel.The inside diameter of the housing is isolated from the pumpstages;the outside surface may be treated with a special coating as an added protection from hostile fluid in the well housing.

1.Application

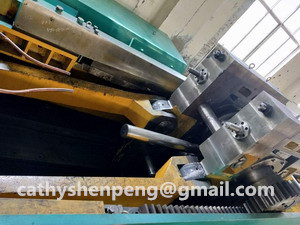

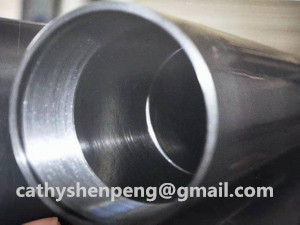

It uses coll rolling process and formed in one step,inner hole precision /-0.05mm, degree of finish Ra0.8~1.6, section wallthickness deviation 0.2mm, ovality within 0.05mm,straightness 0.2mm/m, The cold-rolled housing can be directly assembled and used without honing, which greatly saves the processing cost and improves the working efficiency.

2.Characteristics

Suitable for electric submersible motor ,pump ,protector  and seperator with different geological conditions

3.Types of ESP systems

375series,456series,562series,540series according to clients' drawing

4.Material

ASTM A335 T9/P9,45#steel,ASTM A335 P5,TP304,TP316,316L,L80 etc.according to clients' requirements

5.Technical Performance

Tensile strength>=560Mpa

Yield strength>=525MPa

Elongation>=10%

Circular degree of inner hole<=0.054mm

Deviation of wall thickness <=0.5mm

Straightness<=0.08mm/m

6.Delivery Requirement

Provide dimension and material test report

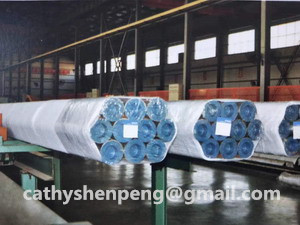

7.Storage and Transportation

Set the shelves neatly,do anti-rust treatment,fobidden soaking and bumping.
