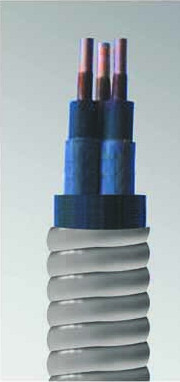

Hot sale 3kv Copper conductor Combined Insulation Lead Sheath Nitrile Rubber jacket steel Monel Armor Round ESP Cable
Hot sale 3kv Copper conductor Combined Insulation Lead Sheath Nitrile Rubber jacket steel Monel Armor Round ESP Cable
Contact Now

Hot sale 3kv Copper conductor Combined Insulation Lead Sheath Nitrile Rubber jacket steel Monel Armor Round ESP Cable

Minimum Order Quantity : 300m Packaging Details : All steel corrugated reels with fixed base,outside wrapped by fuming wood or wood box for small quanyities
Supply Ability : 10000000m/month
Place of Origin: China Brand Name: Gardener
Certification: API ISO

Detail Information
Conductor: Copper Combined Insulation: With Polyimide-F46 Composite Film And EPDM Rubber
Jacket: Nitrile Rubber Armour: Galvanized Steel Or Monel Tape Interlocking
Type: Round Specification: 3KV

Product Description

Electric Submersible Pump Cable (ESP Cable)

PI& EPDM/Alloy lead/NBR/232℃(450°F)/Round



More informations Please kindly contact Cathy,cathyshenpeng@gmail.com,



Products Description



Conducer Oxygen-free solid(stranded) bare copper
Insulation Combined insulation with with polyimide-F46 composite film and EPDM rubber
Inner ,fiber tape covered completely over the sheath lead sheath
Outer Nitrile Rubber Jacket
Armour full galvanized steel(or stainless steel or Monel)tape interlocking armour
Type Round
Voltage 3kv,4kv,5kv,6kv.

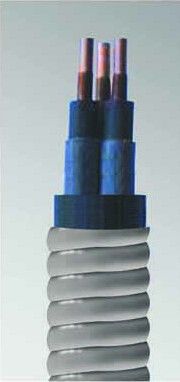

Hot sale 3kv Copper conductor Combined Insulation Lead Sheath Nitrile Rubber jacket steel Monel Armor Round ESP Cable 0



Production Range

Voltage:3kv,4kv,5kv,6kv.

Temperature:The permissible and long-term working temperature is 232°C(450°F)

Performing Criterion

API RP 11S5-2008,11S6-2008;IEEE 1017,1018,1019;GB/T 16750-2008



Application Range

The cable is applicable for using in Electric submersible pump units with rated voltage less than 3kv or 6kv.It has the excellent function of oil-resistance,heat-resistance and corrosion-resistance.

Specification & Parameters

Hot sale 3kv Copper conductor Combined Insulation Lead Sheath Nitrile Rubber jacket steel Monel Armor Round ESP Cable 1

We can also production customer's required cable according to the concrete specification.

Delivery &Packing

All steel corrugated reels with fixed base,outside wrapped by fuming wood;

Packing length according to customer's requirements.

Manufacturing Equipment



Hot sale 3kv Copper conductor Combined Insulation Lead Sheath Nitrile Rubber jacket steel Monel Armor Round ESP Cable 2Hot sale 3kv Copper conductor Combined Insulation Lead Sheath Nitrile Rubber jacket steel Monel Armor Round ESP Cable 3

Hot sale 3kv Copper conductor Combined Insulation Lead Sheath Nitrile Rubber jacket steel Monel Armor Round ESP Cable 4Hot sale 3kv Copper conductor Combined Insulation Lead Sheath Nitrile Rubber jacket steel Monel Armor Round ESP Cable 5Hot sale 3kv Copper conductor Combined Insulation Lead Sheath Nitrile Rubber jacket steel Monel Armor Round ESP Cable 6Hot sale 3kv Copper conductor Combined Insulation Lead Sheath Nitrile Rubber jacket steel Monel Armor Round ESP Cable 7Hot sale 3kv Copper conductor Combined Insulation Lead Sheath Nitrile Rubber jacket steel Monel Armor Round ESP Cable 8Hot sale 3kv Copper conductor Combined Insulation Lead Sheath Nitrile Rubber jacket steel Monel Armor Round ESP Cable 9Hot sale 3kv Copper conductor Combined Insulation Lead Sheath Nitrile Rubber jacket steel Monel Armor Round ESP Cable 10Hot sale 3kv Copper conductor Combined Insulation Lead Sheath Nitrile Rubber jacket steel Monel Armor Round ESP Cable 11

Testing Equipment

Hot sale 3kv Copper conductor Combined Insulation Lead Sheath Nitrile Rubber jacket steel Monel Armor Round ESP Cable 12Hot sale 3kv Copper conductor Combined Insulation Lead Sheath Nitrile Rubber jacket steel Monel Armor Round ESP Cable 13Hot sale 3kv Copper conductor Combined Insulation Lead Sheath Nitrile Rubber jacket steel Monel Armor Round ESP Cable 14Hot sale 3kv Copper conductor Combined Insulation Lead Sheath Nitrile Rubber jacket steel Monel Armor Round ESP Cable 15Hot sale 3kv Copper conductor Combined Insulation Lead Sheath Nitrile Rubber jacket steel Monel Armor Round ESP Cable 16Hot sale 3kv Copper conductor Combined Insulation Lead Sheath Nitrile Rubber jacket steel Monel Armor Round ESP Cable 17

Product Qualification

API ISO,API Q1,API TS,CCC.



Loading and Installation Diagram

Hot sale 3kv Copper conductor Combined Insulation Lead Sheath Nitrile Rubber jacket steel Monel Armor Round ESP Cable 18Hot sale 3kv Copper conductor Combined Insulation Lead Sheath Nitrile Rubber jacket steel Monel Armor Round ESP Cable 19
