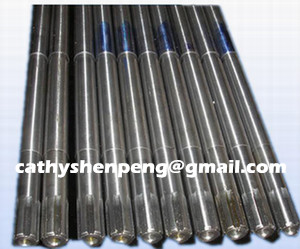

Oil Electric Sumbersible Pump shaft with Monel 500,Inconel 625,inconel 718 material

China Oil Electric Sumbersible Pump shaft with Monel 500,Inconel 625,inconel 718 material supplier
Oil Electric Sumbersible Pump shaft with Monel 500,Inconel 625,inconel 718 material supplier Oil Electric Sumbersible Pump shaft with Monel 500,Inconel 625,inconel 718 material supplier

Large Image :  Oil Electric Sumbersible Pump shaft with Monel 500,Inconel 625,inconel 718 material

Product Details:

Place of Origin: CHINA
Brand Name: GARDENER
Model Number: Oil Electric Sumbersible Pump shaft with Monel 500,Inconel 625,inconel 718 material

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: according to reqirements
Packaging Details: iron shelf
Delivery Time: 10~30days
Payment Terms: T/T
Contact Now
Detailed Product Description
Material: Monel K500,Inconel 625,Inconel 718 Diameter: 15.8mm~35mm
Tensile Strength: 895~1171MPa Yield Strength: 661~895Mpa

Oil Electric Sumbersible Pump shaft with Monel 500,Inconel 625,inconel 718 material



Application

It is mainly used for fixing the impeller and diffuser of the electric submersible pump and plays the role of transmission, fixation and support.



Characteristics

Mostly use Monel K500 alloy as pump shaft material. Because of its special and excellent mechanical properties such as torsion resistance and tensile resistance, and its high temperature and corrosion resistance under complex well conditions, it can make the pump have a satisfactory operation life under the maximum strength and load, so that the material has been used for a long time and widely. As one of the main components of the pump shaft, the accurate determination of nickel component is particularly important.



Specifications

No. Product Name Diameter (mm) Material Length
1 Electric pump shaft Φ16.4±0.026 Monel K500 as per drawing
2 electric pump shaft Φ17.4±0.026 Monel K500 as per drawing
3 electric pump shaft Φ22.2±0.026 Monel K500 as per drawing
4 electric pump shaft Φ25.4±0.026 Monel K500 as per drawing

Size Range

Diameter range from 15.8mm~35mm.



Technical Performance

Diameter mm 14.27-15.87 17.48-28.7 30.18-33.27 38.1 44.45
Min.tensile strength Mpa 1171 1102 1034 999 895
Min.Yield strength Mpa 895 895 826 792 661
Min.enlongation % 18 18 18 18 18
Hardness HRC 42 42 42 40 38



Delivery Requirement

Provide dimension and material test report



Storage and Transportation

Set the shelves neatly,do anti-rust treatment,fobidden soaking and bumping.

Oil Electric Sumbersible Pump shaft with Monel 500,Inconel 625,inconel 718 materialOil Electric Sumbersible Pump shaft with Monel 500,Inconel 625,inconel 718 material



More informations please contact cathyshenpeng@gmail.com, we supply electric submersible pump shaft with high quality,competitive price and good delivery time.
