Proector shaft with spline sleeve for electric submersible pumping system

China Proector shaft with spline sleeve for electric submersible pumping system supplier
Proector shaft with spline sleeve for electric submersible pumping system supplier Proector shaft with spline sleeve for electric submersible pumping system supplier

Large Image :  Proector shaft with spline sleeve for electric submersible pumping system

Product Details:

Place of Origin: CHINA
Brand Name: GARDENER
Model Number: Oil Electric Sumbersible Protector shaft with 4135,Monel K500,17-4,Inconel 625 and Inconel 718 material

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: according to reqirements
Packaging Details: iron shelf
Delivery Time: 10~30days
Payment Terms: T/T
Contact Now
Detailed Product Description
Material: Monel K500,Inconel 625,Inconel 718,17-4,AISI4135 Tensile Strength: >=140000PSI
Yield Strength: >=100000PSI Elongation%: >=20%
Hardness: C27~C35

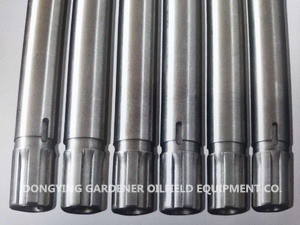

Protector shaft for electric submersible pumping system

with 4135,Monel K500,17-4,Inconel 625 and Inconel 718 material



Application

Main component of protector for keeping balance of motor.

Characteristics

Suitable for all kinds of oil electric submersible pump systems with different geological conditions

Specifications



No. Product Name Length
1 Protector shaft 1599
2 Protector shaft 1769
3 Protector shaft 1600
4 Protector shaft 1687
5 Protector shaft 2200
6 Protector shaft 1639
7 Protector shaft 1687

Size Range

Diameter range from 15.8mm~35mm.



Material

AISI 4135(35CrMo),17-4,Monel K500,Inconel 625,Inconel 718



Technical Performance

Min.tensile strength >=140000PSI
Min.Yield strength >=100000PSI
Min.enlongation % >=20%
Hardness HRC C27~35



Delivery Requirement

Provide dimension and material test report

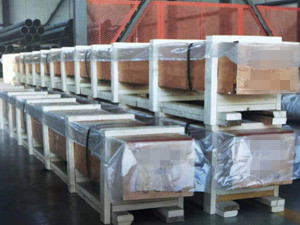

Storage and Transportation

Set the shelves neatly,do anti-rust treatment,fobidden soaking and bumping.

Proector shaft with spline sleeve for electric submersible pumping systemProector shaft with spline sleeve for electric submersible pumping system



More informations please contact cathyshenpeng@gmail.com, we supply electric submersible pump shaft with high quality,competitive price and good delivery time.
