Submersible pump cable with 650°C working temperature with less than 3kv/6kv rated voltage and long service time

China Submersible pump cable with 650°C  working temperature with less than 3kv/6kv rated voltage and long service time supplier

Large Image :  Submersible pump cable with 650°C working temperature with less than 3kv/6kv rated voltage and long service time

Product Details:

Place of Origin: CHINA
Brand Name: GARDENER

Payment & Shipping Terms:

Minimum Order Quantity: 3000m
Price: see qty
Packaging Details: cable drum
Delivery Time: 15~30days
Payment Terms: T/T
Contact Now
Detailed Product Description
Max.working Temperature: 260°C,450°C,600°C,650°C. Application: Ordinary Acid And Alkali,chlorine And Sulfur

Submersible pump cable with 650°C working temperature with less than 3kv/6kv rated voltage and long service time

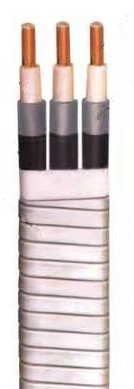

The submersible pump cable is manufactured of flat and round type by taking continuous seamless stainless steel pipes as the sheath,the single copper rod as the conductor and magnesium oxide or F46 as the insulation.



The submersible pump cable is suitable for power supply of the submersible pump units whose rated voltage is less than 3kv or 6kv.Particularly,it has an excellent electrical resistance against oil,presure,high temperature,corrosion and high strength,so it is very applicable to the high temperature area in the wells,and its long-term operating temperature can be up to 650°C.Its service life can be 5times than ordinary ESP cable .



Max. working temperature:260°C,450°C,600°C,650°C.

Core number:3

Sheath:SS304,SS321,SS316L,SS825



Submersible pump cable with 650°C  working temperature with less than 3kv/6kv rated voltage and long service time
