Home ProductsESP Power Cable,MLE and Tubing Encapsulation conductor cable(TEC)

Downhole Tubing Encapsulated Conductor cable for monitor, provide power and transmit signals in a downhole application.

Certification
Good quality SmCo Magnet for sales
Good quality SmCo Magnet for sales
Everything is good, the equipment is running fine-2016 Client bought electric submersible pump,submersible motor,protector,seperator,check valve,BOI

—— Ben

I'm Online Chat Now

Downhole Tubing Encapsulated Conductor cable for monitor, provide power and transmit signals in a downhole application.

China Downhole Tubing Encapsulated Conductor cable for monitor, provide power and transmit signals in a downhole application. supplier
Downhole Tubing Encapsulated Conductor cable for monitor, provide power and transmit signals in a downhole application. supplier Downhole Tubing Encapsulated Conductor cable for monitor, provide power and transmit signals in a downhole application. supplier

Large Image :  Downhole Tubing Encapsulated Conductor cable for monitor, provide power and transmit signals in a downhole application.

Product Details:

Place of Origin: CHINA
Brand Name: GARDENER
Certification: ISO9001
Model Number: 16AWG/18AWG

Payment & Shipping Terms:

Minimum Order Quantity: according to material and requirements
Price: $2~10/meter
Packaging Details: reel
Delivery Time: 15-30days
Payment Terms: T/T
Supply Ability: 500,000m each month
Contact Now
Detailed Product Description
Material: 316/316L/alloy 825 Or According To Client's Requirements Conductor: Tinned Copper Stranded Or One Copper Wire ,or According To Client's Requirement
Wall Thickness Of Steel Tube: 0.028" And 0.035" Tube Diameter: 6.35mm/4.0mm/3.5mm/3.2mm Etc.according To Clients' Requirements
Working Temperature: - 40°C To 150°C Cable O.D.: 11X11mm Or No Encapsulation
Purpose: Detective Cable Color Of Cable: Yellow

Downhole Tubing Encapsulated Conductor cable/downhole TEC cable

can be used in harsh downhole environment



DGOE is a professional supplier of downhole TEC (Tubing Encapsulated Conductor) cables that are used in the oil & gas industry. DGOE downhole TEC cable are used to monitor, provide power and transmit signals in a downhole application. Cables used in the oil & gas industry must be able to withstand extreme environments, extreme temperatures and extreme pressure.



Standard encapsulation sizes(11mmx11mm square and flatpack and multiple tube construction)are available to meet almost any downhole requirements.Composite cables utilizing various combinations of electrical and optical components are available to match specific downhole needs.



Please contact cathyshenpeng@gmail.com for more informations.



We also can provide this cable without encapsulation.

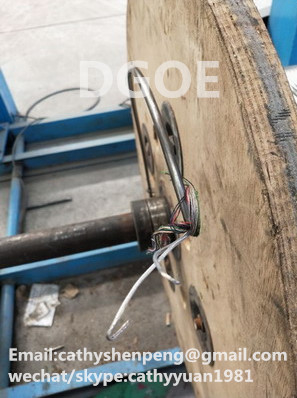

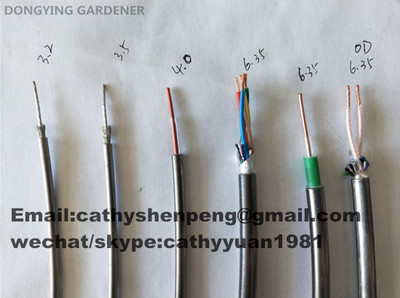

See below pictures, at present we have these sizes that other clients asked.

Please tell us details,we can make it according to your requirements soon.

Downhole Tubing Encapsulated Conductor cable for monitor, provide power and transmit signals in a downhole application.





Downhole Tubing Encapsulated Conductor cable for monitor, provide power and transmit signals in a downhole application.



**18 AWG 7X0.39mm

    FEP insulation

    Polypropylene filler

    316L/Alloy 825tube wallthickness 0.71mm

    Yellow square profile 11mmx11mm



**16AWG 7X0.49mm

   FEP insulation

   Polypropylene filler

   316L/Alloy 825tube wallthickness 0.89mm

   Yellow square profile 11mmx11mm



Downhole Tubing Encapsulated Conductor cable for monitor, provide power and transmit signals in a downhole application.

Downhole Tubing Encapsulated Conductor cable for monitor, provide power and transmit signals in a downhole application.Downhole Tubing Encapsulated Conductor cable for monitor, provide power and transmit signals in a downhole application.
