Electric Submersible Pump Cable(Motor Lead Extension)for ESP( 205℃(401°F)

China Electric Submersible Pump Cable(Motor Lead Extension)for ESP( 205℃(401°F) supplier

Large Image :  Electric Submersible Pump Cable(Motor Lead Extension)for ESP( 205℃(401°F)

Product Details:

Place of Origin: China
Brand Name: GARDENER
Certification: APIISO,API Q1,API TS,CCC
Model Number: Reda type

Payment & Shipping Terms:

Minimum Order Quantity: 10M
Price: 23.4$/M
Packaging Details: reel,if small quanity,packing is plwood box.
Delivery Time: 10days
Contact Now
Detailed Product Description
VOLTAGE: 3KV,4KV,5KV,6KV #5: AWG Flat Lead Monel Sheath/Galvanised Armor

Electric Submersible Pump Cable(MLE)

PI& EPDM/Alloy Lead /205℃(401°F)/Flat



Product Description:

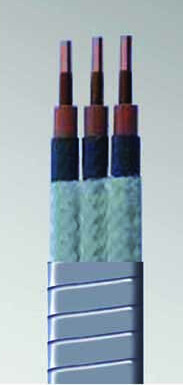

Oxygen-free solid bare copper conductor,combined insulation with Polyimide-F46 composite film and EPDM rubber,alloy lead sheath,polytef and fiber tape(synthetic braid)covered completely over the sheath,full galvanized steel(or stainless steel or Monel)Tape interlocking Armour,Flat type.



Production Range

Voltage:3kv,4kv,5kv,6kv

Temperature:The permisssible and long-term working temperature is 205℃(401°F)



Performing Criterion



API RP 11S5-2008,11S6-2008,IEEE 1017,1018,1019;GB/T16750-2008

Electric Submersible Pump Cable(Motor Lead Extension)for ESP( 205℃(401°F)



Application Range

The cable is applicable for using in electric submersible pump units with rated voltage less than 3kv or 6kv.It has the eccellent function of oil-resistance,heat-resistance and corrosion-resistance.

Electric Submersible Pump Cable(Motor Lead Extension)for ESP( 205℃(401°F)

We can also production customer's required cable according to the concrete specification.



Delivery & Packing



All-steel corrugated reels with fixed base,outside wrapped by fuming wood;

Packing length according to customer's requirements.
