API Electric Submersible Pump Cable(MLE)(260°C(500°F)

I'm Online Chat Now

API Electric Submersible Pump Cable(MLE)(260°C(500°F)

China API Electric Submersible Pump Cable(MLE)(260°C(500°F) supplier

Large Image :  API Electric Submersible Pump Cable(MLE)(260°C(500°F)

Product Details:

Place of Origin: China
Brand Name: Gardener
Certification: API ISO

Payment & Shipping Terms:

Minimum Order Quantity: 300m
Packaging Details: All steel corrugated reels with fixed base,outside wrapped by fuming wood or wood box for small quanyities
Supply Ability: 1000m+10days
Detailed Product Description
Voltage: 3kv,4kv,5kv,6kv Temperature: 260°C(500°F)
Armour: Monel Or Other

Electric Submersible Pump Cable (MLE)

PI& Fluoroplastics/Fluoroplastics/260℃(500°F)/Flat



Products Description

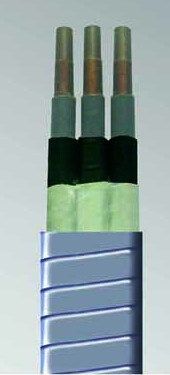

Oxygen-free solid bare copper conductor,combined insulation with polyimide-F46 composite film and fluoroplastics,fluoroplastics jacket,polytef and fiber tape(synthetic braid)covered completely over the jacket,full galvanized steel(or stainless steel or Monel)tape interlocking armour,flat type.



Production Range

Voltage:3kv,4kv,5kv,6kv.

Temperature:The permissible and long-term working temperature is 260°C(500°F)

Performing Criterion

API RP 11S5-2008,11S6-2008;IEEE 1017,1018,1019;GB/T 16750-2008

API Electric Submersible Pump Cable(MLE)(260°C(500°F)

Application Range

The cable is applicable for using in Electric submersible pump units with rated voltage less than 3kv or 6kv.It has the excellent function of oil-resistance,heat-resistance and corrosion-resistance.

Specification & Parameters

API Electric Submersible Pump Cable(MLE)(260°C(500°F)

We can also production customer's required cable according to the concrete specification.

Delivery &Packing

All steel corrugated reels with fixed base,outside wrapped by fuming wood;

Packing length according to customer's requirements.

Manufacturing Equipment

API Electric Submersible Pump Cable(MLE)(260°C(500°F)API Electric Submersible Pump Cable(MLE)(260°C(500°F)API Electric Submersible Pump Cable(MLE)(260°C(500°F)API Electric Submersible Pump Cable(MLE)(260°C(500°F)API Electric Submersible Pump Cable(MLE)(260°C(500°F)API Electric Submersible Pump Cable(MLE)(260°C(500°F)API Electric Submersible Pump Cable(MLE)(260°C(500°F)API Electric Submersible Pump Cable(MLE)(260°C(500°F)

Testing Equipment

API Electric Submersible Pump Cable(MLE)(260°C(500°F)API Electric Submersible Pump Cable(MLE)(260°C(500°F)API Electric Submersible Pump Cable(MLE)(260°C(500°F)API Electric Submersible Pump Cable(MLE)(260°C(500°F)API Electric Submersible Pump Cable(MLE)(260°C(500°F)API Electric Submersible Pump Cable(MLE)(260°C(500°F)

Product Qualification

API ISO,API Q1,API TS,CCC.
