|Place of Origin:||China|
|Certification:||API ISO,API TS,API Q1,CCC|
|Minimum Order Quantity:||400m|
|Packaging Details:||All steel corrugated reels with fixed base,outside wrapped by fuming wood or wood box for small quanyities|
|Armour:||Monel Or Other|

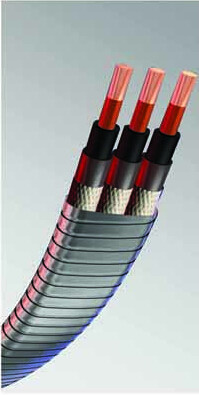

Electric Submersible Pump Cable (MLE)
PI& EPDM/Alloy Lead/232℃(450°F)/Flat/Motor Lead Extension
Oxygen-free solid (Stranded)bare copper conductor,combined insulation with polyimide-F46 composite film and EPDM rubber,alloy lead sheath,fiber tape covered completely over the sheath,full galvanized steel(or stainless steel or Monel)tape interlocking armour,flat type.
Temperature:The permissible and long-term working temperature is 232°C(450°F)
API RP 11S5-2008,11S6-2008;IEEE 1017,1018,1019;GB/T 16750-2008
The cable is applicable for using in Electric submersible pump units with rated voltage less than 3kv or 6kv.It has the excellent function of oil-resistance,heat-resistance and corrosion-resistance.
Specification & Parameters
We can also production customer's required cable according to the concrete specification.
All steel corrugated reels with fixed base,outside wrapped by fuming wood;
Packing length according to customer's requirements.
API ISO,API Q1,API TS,CCC.
