|VOLTAGE:||3KV,4KV,5KV,6KV||#5:||AWG Flat Lead Monel Sheath/Galvanised Armor|
|Working Temperature:||205℃(401°F)||Advantages:||Oil-resistance,heat-resistance,corrosion Resistance|

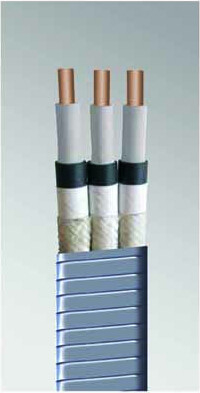

Electric Submersible Pump Cable(MLE)
PI& EPDM/Alloy Lead /205℃(401°F)/Flat
cellphone:0086 159 6388 1160(whats app)
Oxygen-free solid bare copper conductor,combined insulation with Polyimide-F46 composite film and EPDM rubber,alloy lead sheath,polytef and fiber tape(synthetic braid)covered completely over the sheath,full galvanized steel(or stainless steel or Monel)Tape interlocking Armour,Flat type.
Temperature:The permisssible and long-term working temperature is 205℃(401°F)
API RP 11S5-2008,11S6-2008,IEEE 1017,1018,1019;GB/T16750-2008
The cable is applicable for using in electric submersible pump units with rated voltage less than 3kv or 6kv.It has the eccellent function of oil-resistance,heat-resistance and corrosion-resistance.
We can also production customer's required cable according to the concrete specification.
Factory workshop and Equipments
Our factory covers an area of more than 178,000 square meters,more than 100,000 square meters buliding area,has imported Germany,Finland,Canada and other countries and regions of advanced CNC production equipment and testing equipment,we can produce less than 3kv or less than 6kv whole series electric submersible pumps cable.
Canada KALMARK Interlocking Armor Machine
90 Extruding Machine
Loading and Installation Diagram
Delivery & Packing
All-steel corrugated reels with fixed base,outside wrapped by fuming wood;
Packing length according to customer's requirements.
