|VOLTAGE:||3KV,4KV,5KV,6KV||#5:||AWG Flat Lead Monel Sheath/Galvanised Armor|

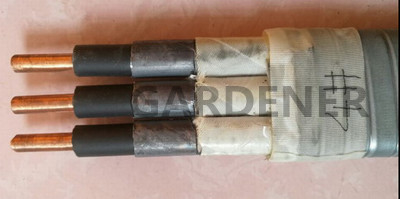

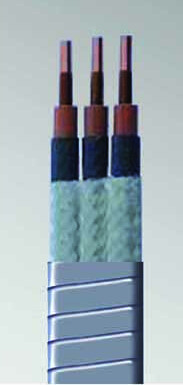

Electric Submersible Pump Cable(MLE)
PI& EPDM/Alloy Lead /205℃(401°F)/Flat
Oxygen-free solid bare copper conductor,combined insulation with Polyimide-F46 composite film and EPDM rubber,alloy lead sheath,polytef and fiber tape(synthetic braid)covered completely over the sheath,full galvanized steel(or stainless steel or Monel)Tape interlocking Armour,Flat type.
Temperature:The permisssible and long-term working temperature is 205℃(401°F)
API RP 11S5-2008,11S6-2008,IEEE 1017,1018,1019;GB/T16750-2008
The cable is applicable for using in electric submersible pump units with rated voltage less than 3kv or 6kv.It has the eccellent function of oil-resistance,heat-resistance and corrosion-resistance.
We can also production customer's required cable according to the concrete specification.
Delivery & Packing
All-steel corrugated reels with fixed base,outside wrapped by fuming wood;
Packing length according to customer's requirements.
