Product Description
Retrievable hydraulic whipstock
As the extension and development of directional well technology,branch well is put more and more attention when the directional well and horizontal well techniology is becoming more and more perfect.Recyclable wihipstock is the key tools in branch well drilling technologies.It play a vital role for branch well drilling and completion.
The recyclable whipstock made by our company has lots of advantages,such as easy operation,firm sealing,high recovering ratio and being reusable etc.

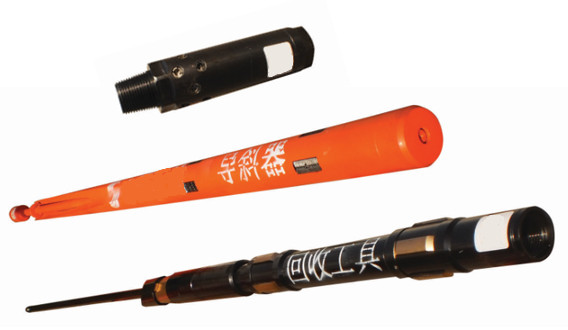

Recyclable whipstock is divided into three parts including whipstock ,circulation flushing valve and recovery tool.
1.Whipstock
Whipstock adopts hydraulic sealing which is firm and easy to operate.The inclined plane is arc-like and receives super hardening treatment.The milling cone coincides highly with the inclined plane when window cutting.The more perfect self-locking mechanism adopts axial and circumferential methods which greatly improve the tool reliability.
2.Circulation Flushing Valve
Circulation flushing valve is mainly performed fluid communication when tools are descending,reverse circulation flushing and normal circulation pressure sealing effect.Interior special guide mechanism improves tool reliablity because it ensures that flushing liquid is smoothly connected when tools are descending,at the same time avoids the pipe column solid phase particles and impurities to precipitate into the whipstock .
3. Recovery tool
Recovery tool adopts double salvage agencies,every component part is independent and interrelated.Therefore,it greatly improves the return rate of recovery tools.
And after buying our products,if you need,we will send one engineer to help you to operate the equipment.
We can help you to finish the work sooner.When all tools are well prepared,within 7~10days,window sidetracking operation will be finished.
Contact us now for more informations!
